Bracketless Emerson 56 Frame Pump Parts (5/2009+)

Please note: These are the Emerson-made version of these pumps. The LX-made pumps are more common (click here for the LX-made versions). You can replace the LX-made pump with an Emerson pump. However, pump parts are not interchangeable. The label will indicate if it is LX or Emerson.

Universal Mounts are available for the J-LX, J-500, J-400, J-300, and J-100 Series hot tubs. Find the specifical hot tub parts and their specifications below:

J-LX/J-LXL/J-500/J-400/J-300/J-100 North America 60Hz

• 6500-352S Universal Bracket Mount, 1-Speed
• 6500-365 Universal Bracket Mount, 1-Speed
• 6500-367 Universal Bracket Mount, 2-Speed
• 6500-363 Universal Bracket Mount, 1-Speed

Pump Parts

1. Union Assembly, Straight (O- 6500-232 Ring Included)
2. Union Assembly, 45° 6500-037 (O-Ring Included)
3. Union O-Ring (1 ea.) 6000-645
4. Drain Plug with O-Ring (1 ea.) 6500-547
5. Screw, Self-Tapping (1 ea.) 6500-548

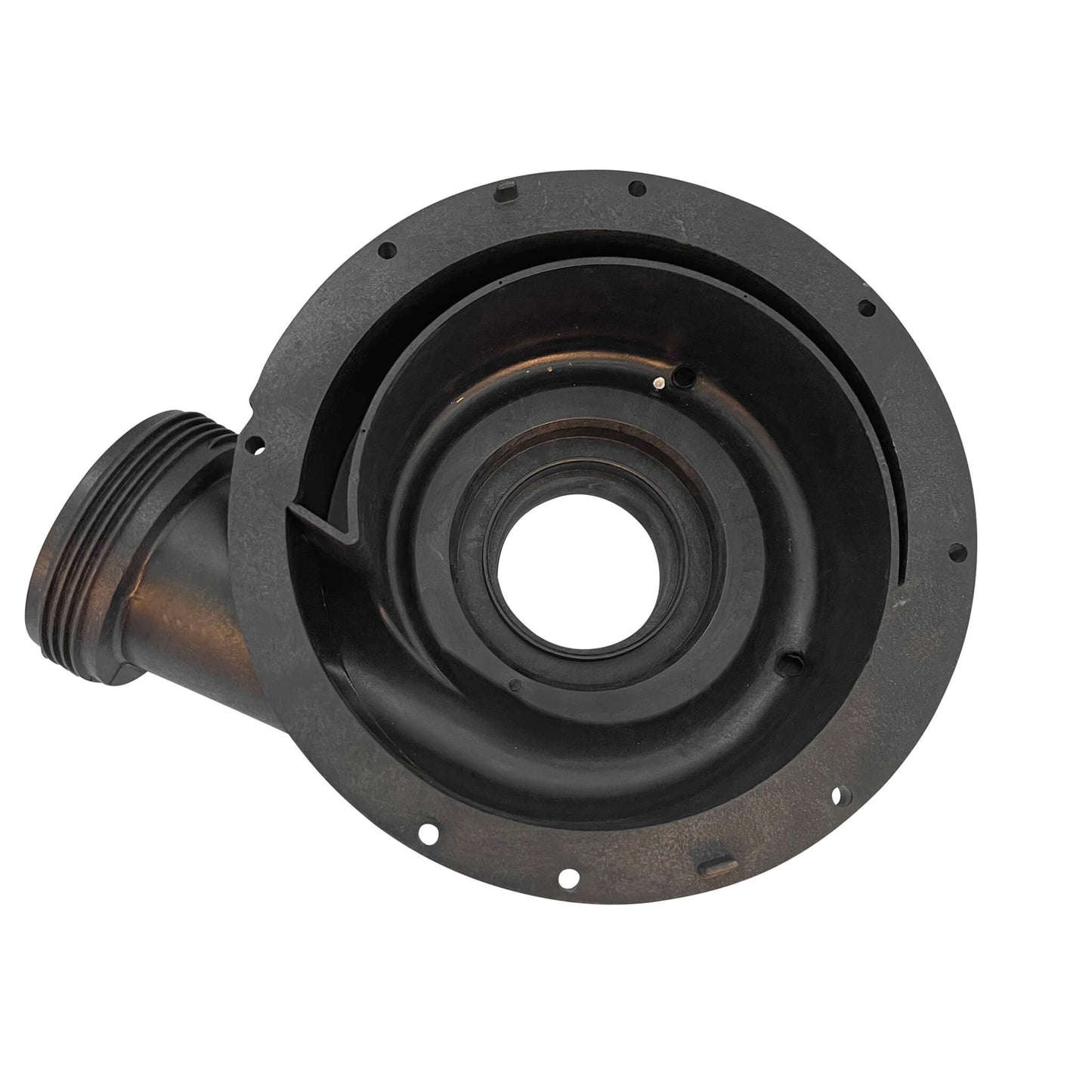

6. Housing, Front (Volute) 6500-546
7. Housing O-Ring 6500-545
8. Impeller, 2.5hp 6500-549
9. Seal-Plate, rotation 6500-544
10. Seal, ceramic, Stationary for North American 60Hz Pumps 6500-543
11. Rear housing 6500-541
12. Adapter, 1/4-18 NSPM thread x 3/8" Barb, Stainless Steel 6540-171 **Requires new o-ring 6540-263
13. O-Ring, 0.434" ID x 0.682" OD x 0.125" 6540-263
14. Run Capacitor 2.5hp (1&2 Speed Emerson Motors Only) 6000-163
